Casement Window Crank Handle Operator, Diecast Construction Aluminum, Left Hand, Square Body, 9 In.
Special Order

Casement Window Crank Handle Operator, Diecast Construction Aluminum, Left Hand, Square Body, 9 In.

SKU #658484 Model #H 3514

UPC #049793035141

Prime Line


Regular Price
$28.99

Available for Special Order. Pickup in store in 3-8 days.
Brinkmann's Blue Point , 125 Montauk Hwy , Blue Point , NY
Check Inventory at other locations
Will you be going in-store to purchase this product?

In-store Pickup

.
Available for Special Order. Pickup In store in 3-8 days.

Description

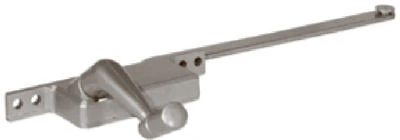

This casement operator is constructed of a diecast housing and crank handle, with a 9 in. steel arm and a hardened steel worm gear mechanism. It features a square body and mounts on the left side of the window, when viewing the window from the inside looking out. This operator is used on older steel-framed casement windows, with a pair of mounting holes spaced at 3-7/8 in. and another at 4-3/4 in. on center. A crank handle and installation fasteners are included with this casement operator.

  • Used on old style, steel-framed crank-out casement windows
  • This is a left-handed operator. Handing is determined when facing the window from the inside looking out. Like the hinges, this operator will also mount on the left side of the window
  • Diecast constructed housing and crank
  • Hardened steel constructed arm and drive gears
  • Equipped with a diecast crank handle and a 9 in. long hardened steel arm
  • Installs with 4 screws. 1 pair spaced apart at 3-7/8 in. on center, and another pair at 4-3/4 in. on center
  • Square housing with aluminum painted finish
  • For further dimensional information, please see the line drawing
