Sliding Door Roller Assembly, 1-1/4 In. Steel Ball Bearing Roller
Special Order

Sliding Door Roller Assembly, 1-1/4 In. Steel Ball Bearing Roller

SKU #630822 Model #D 1515

UPC #049793015150

Prime Line


Regular Price
$7.99

Available for Special Order. Pickup in store in 3-8 days.
Brinkmann's Blue Point , 125 Montauk Hwy , Blue Point , NY
Check Inventory at other locations
Will you be going in-store to purchase this product?

In-store Pickup

.
Available for Special Order. Pickup In store in 3-8 days.

Description

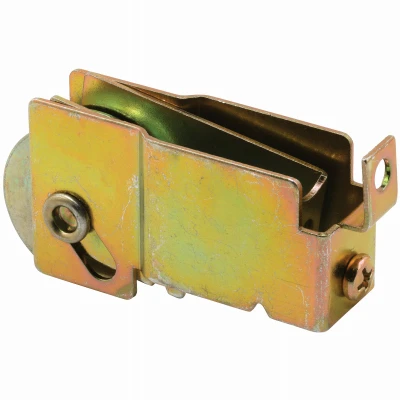

This is an F-tab patio door roller assembly with a 1-1/4 in. concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 3/4 in. wide and 1-1/8 in. tall with a rear adjusting screw. Used by Christian Porter, Fullview and a variety of other patio door manufacturers.

  • Used by Christian Porter, Fullview and a variety of other patio door manufacturers
  • When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
  • 1-1/4 in. diameter ball bearing roller
  • Stamped steel housing and steel roller
