Steel Ball Bearing Sliding Patio Door Roller Assembly, 1-1/2 In.
SKU #630798 Model #D 1594
UPC #049793015945
Prime Line
Regular Price
$9.99
Available for Special Order. Pickup in store in 3-8 days.
Brinkmann's Blue Point , 125 Montauk Hwy , Blue Point , NY Check Inventory at
other locations
Will you be going in-store to purchase this product?
In-store Pickup
.Available for Special Order. Pickup In store in 3-8 days.
Description

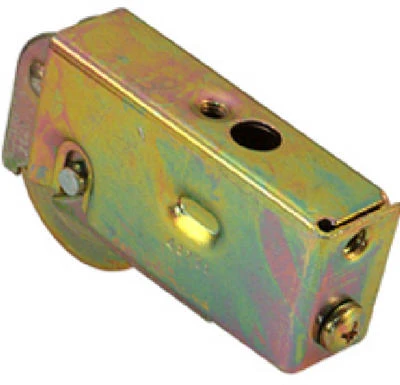

This is a plain back patio door roller assembly with a 1-1/2 in. concave or grooved steel ball bearing roller. It has a plain back housing that is 11/16 in. wide, 1-1/4 in. tall and 2-3/8 in. long. It is rear adjusting with a 1/4-20 threaded mounting hole on the back end and a #10-32 threaded optional use hole on the top. It is used by Daryl, Lenahan, Patio Magic and a variety of other manufacturers of sliding patio doors.
- Used by Daryl, Lenahan, Patio Magic and a variety of other sliding patio door manufacturers
- Plain back housing
- 1-1/2 in. diameter concave steel roller
- Stamped steel housing with ball bearing roller
- Features rear screw adjustment
- Used on metal and vinyl framed sliding patio doors
- A Phillips head screwdriver is required for installation
- For further dimensional information, please see the line drawing
