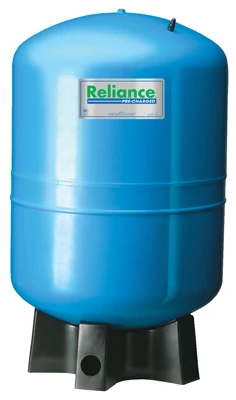

Water System Pump Tank, Vertical, Precharged, 100 Psi, 52-gals.

Reliance 52 gallon capacity vertical pressure pump tank. It has a 100 PSI working pressure and a 38 PSI precharged well system. The lightweight drawn steel shell with an ultra UV high gloss exterior powder coat ensures durability and corrosion resistance. The bacteria-resistant parabolic diaphragm eliminates rubbing on the diaphragm or the tank wall, attached directly to an interior powder-coated wall. The galvanized acceptance fitting provides a 100% corrosion-resistant water reservoir and a reliable water-tight seal. It meets FDA and NSF 61-372 requirements for potable water supply. The durable composite base eliminates corrosion and rotates for easy plumbing alignment. The usable water drawdown at 30-50 PSI is 16.2 US gallons. It has a 1.25" female pipe thread connection.

• 52 gallon capacity
• 100 PSI working pressure
• 38 PSI precharged well system
• Lightweight drawn steel shell with an ultra UV high gloss exterior powder coat
• Bacteria resistant parabolic diaphragm eliminates rubbing on the diaphragm or the tank wall
• Galvanized acceptance fitting provides a 100% corrosion resistant water reservoir and a reliable water tight seal
• Meets FDA and NSF 61-372 requirements for potable water supply
• Durable composite base eliminates corrosion and rotates for easy plumbing alignment
• Usable water drawdown at 30-50 PSI is 16.2 US gallons
• 1.25" female pipe thread connection
